Modelling
Please click on a feature heading for more specific information:
|
modelling | materials | estimating | take-off |
|
| AppliCad's modelling features allow for quick and easy input of roof plans, no matter how creative the architect or designer gets. Complex dormers, multiple eave heights, turrets and verandahs are all easily input. And when an easy plan comes up, AppliCad's quick input tools allow you to have the job finished in minutes. | |
|
click for larger image
|
|
|

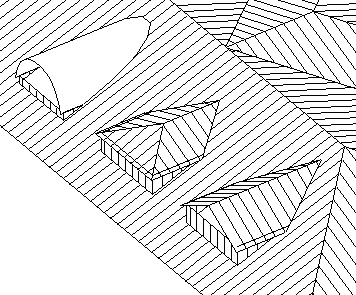

Sorcerer allows for many different variants of Dormers. Choose from simple hip, gable, skillion or barrel dormers as well as Valley Gables, Dutch Gables, Flying Gables and more. All are explained in the fully detailed Reference Guide.
|
 |
|

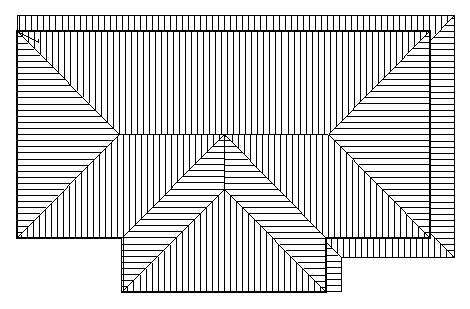

Simple or Complex Verandahs. Use different pitches, heights, widths... with or without hip/gable ends. Include an underlap to create a bellcast verandah.... Countless options.
|
 |
|

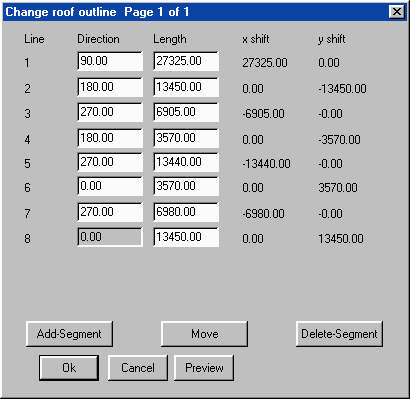

Stop worrying about making a mistake. Rather than re-drawing the roof, simply recover the roof outline and let the computer do the work.
|
 |
|

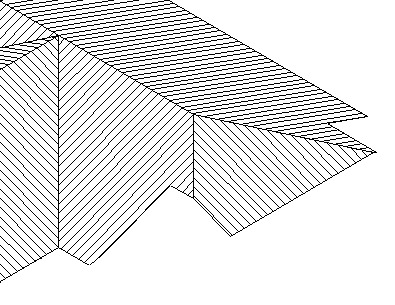

Intersection of multiple roof shapes Draw up a number of different roofs and use the intersect-roofs command to merge the roofs together and create the neccessary complex roof planes.
|
 |
|

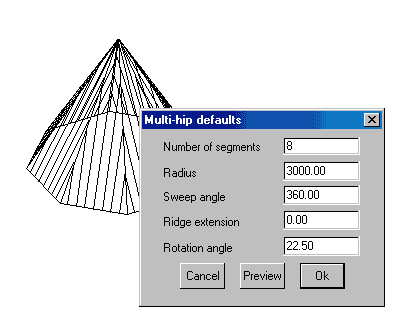

Multi-Hips, Turrets and Bay Windows Easily insert multi-angled roof structures with automatic commands. Don't waste time calculating the angles when the software can do it all for you.
|
 |
|

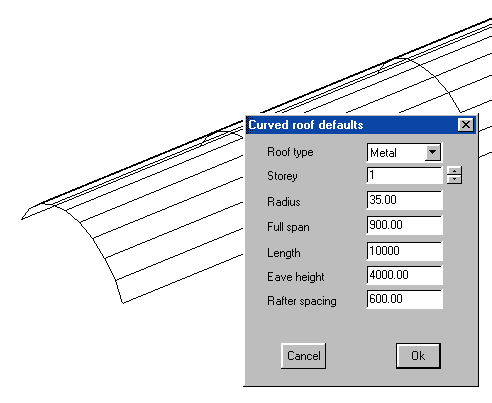

Insert simple curved roofs with either curved boundaries, or curved profiles.
|
 |
|

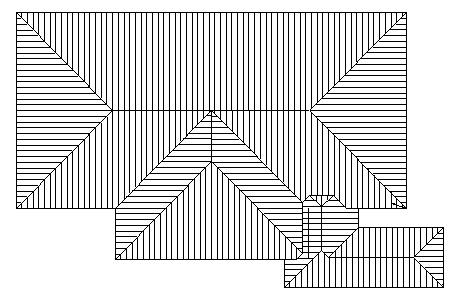

Use the simple barge/rake line, atrium or cut-out command to easily create multiple eave heights on complex jobs in a matter of minutes instead of hours.
|
 |
|
Model as much as your heart desires. Up to 9 different storys can be accurately modelled.
|
 |
|

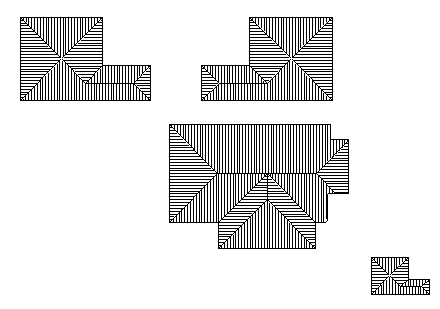

Whether it's a huge commercial zone or a small residential house with a "granny-flat" out the back, they are all easily modelled. Draw as many roofs as you want.
|
 |
|

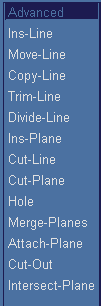

With the advanced commands and the full functionality of a 3D CAD package behind it, you can create ANY roof you want. Cut-out, trim back, divide, mirror, stretch your roof until they're perfect.
|
 |
|
|
|
